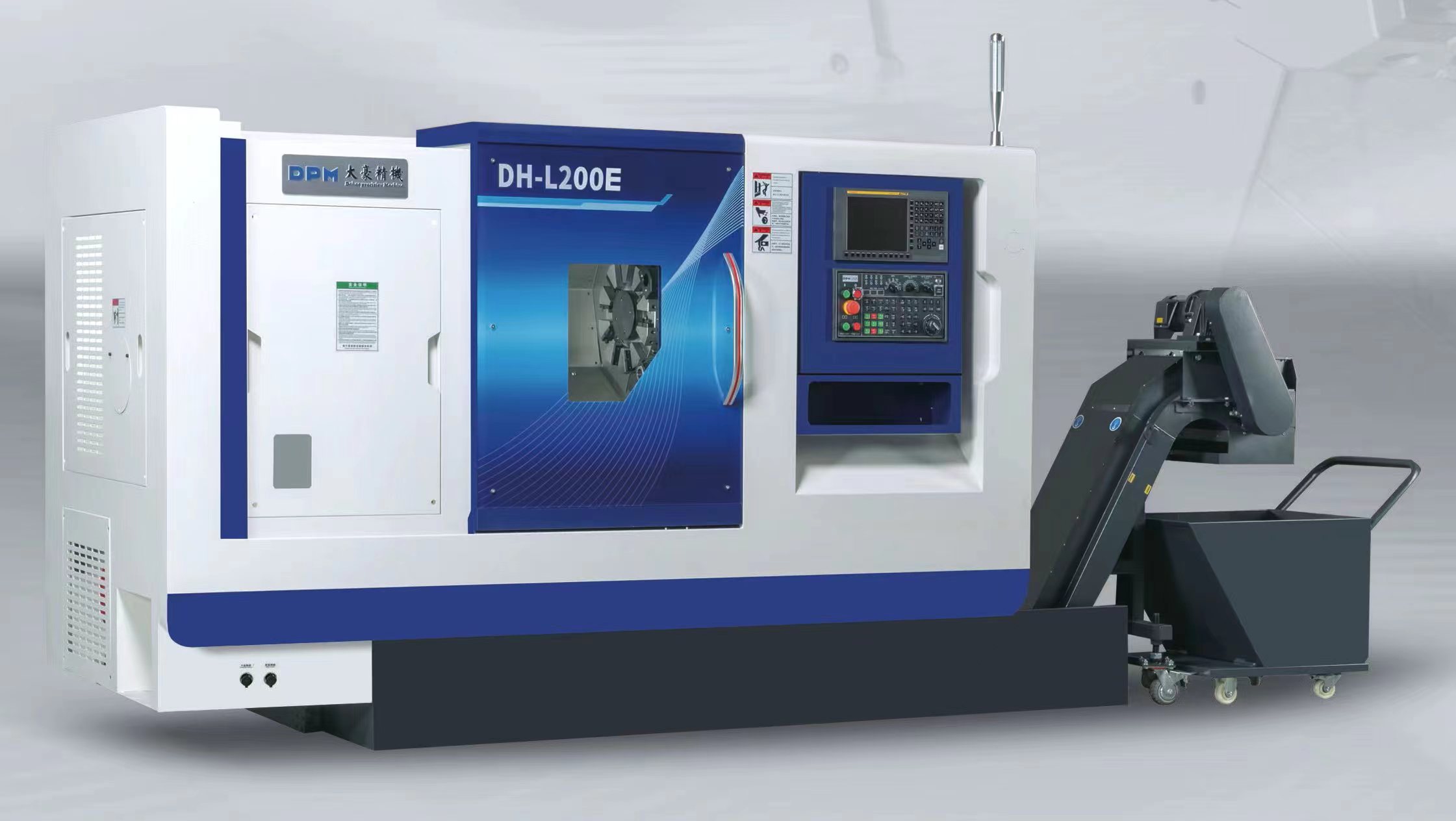

DH-L200E CNC Lathe

Description:Dahao DH-L series CNC lathe features and advantages compared with other Taiwan machine toolbrands with the same specifications of machine tools,the overall inclined bed is easy to concentrateiron chips in the chip removal machine to achieve automatic chip removal, cutting iron eyebrow with highheat, accumulation in the guide rail will make the guide rail heat deformation so that the working accuracychanges. In the process of mass automatic processing, it will ead to the mass scrap of the workpiece.Compared with other Taiwan brands,it has better stability, higher rigidity, greater cutting force,and largerprocessing range. Thus reduce tool loss, reduce customer processing costs, improve the service life ofthe machine.

Product Model:DH-L200E
Manufacturer:
Update time:2024-04-29
Visits:445

Consultation Contact Us

Product Category

View All

Precautions when using CNC lathes

The correct operating method is very important for vertical machining centers

Introduction

Download

Dahao DH-L series CNC lathe features and advantages compared with other Taiwan machine toolbrands with the same specifications of machine tools,the overall inclined bed is easy to concentrateiron chips in the chip removal machine to achieve automatic chip removal, cutting iron eyebrow with highheat, accumulation in the guide rail will make the guide rail heat deformation so that the working accuracychanges. In the process of mass automatic processing, it will ead to the mass scrap of the workpiece.Compared with other Taiwan brands,it has better stability, higher rigidity, greater cutting force,and largerprocessing range. Thus reduce tool loss, reduce customer processing costs, improve the service life ofthe machine.

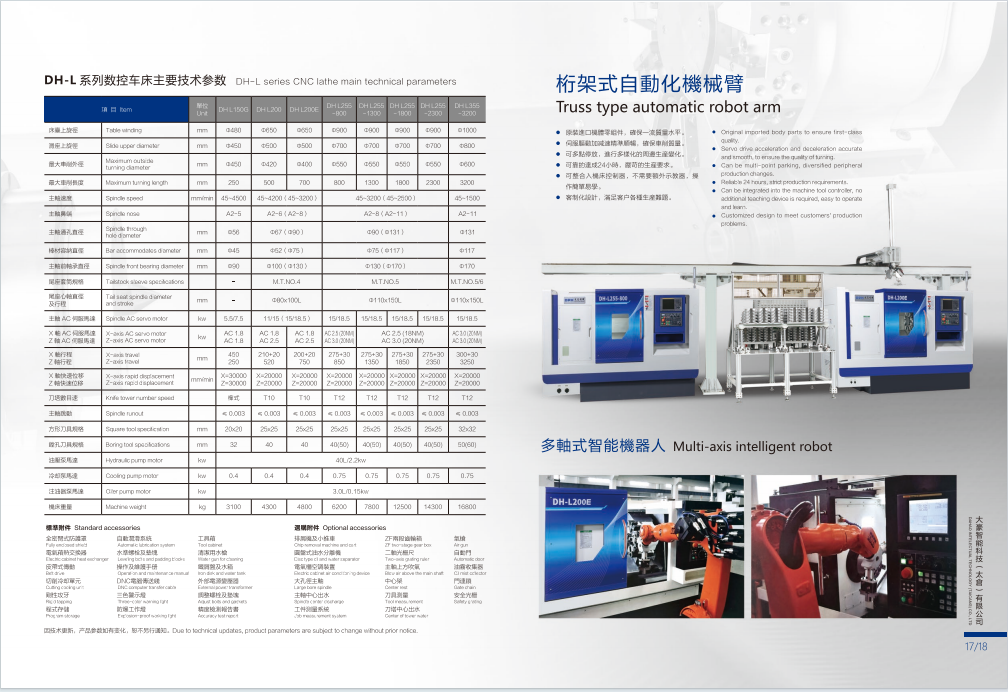

DH-L series CNC lathe main technical parameters

Item	Unit	DH-L200E
Table winding	mm	φ650
Slide upper diameter	mm	φ500
Maximum outside tuming diameter	mm	φ420
Maximum tuming length	mm	700
Spindle soeed	mm/min	45-3200
Spindle nose		A2-8
Spindls throuoh hole diamster	mm	φ90
Bar accommodates diameter	mm	φ75
Soindle front bearing diameter	mm	φ130
Tailstock sleeve specifications		M.T.NO.4
Tail seat soindle diameter and stroke	mm	φ80*100L
Spindle AC servo motor	KW	15/18.5
X-axis AC servo motor Z-axis AC servo motor	kw	AC 1.8 AC2.5
X-axis travel Z-axis travel	mm	200+20 750
X-axis rapid displaoement Z-axis rapid displacement	mm/min	X=20000 Z=20000
Knife tower number speed		T10
Spindle runout		≤0.003
Square tool specification	mm	25×25
Boring tool specifications	mM	40
Hydraulic pump motor	KW	40L/2.2kw
Cooling pump motor	KW	0.4
Oiler pump motor	KW	3.0L/0.15kw
Machine weight	kg	4800
