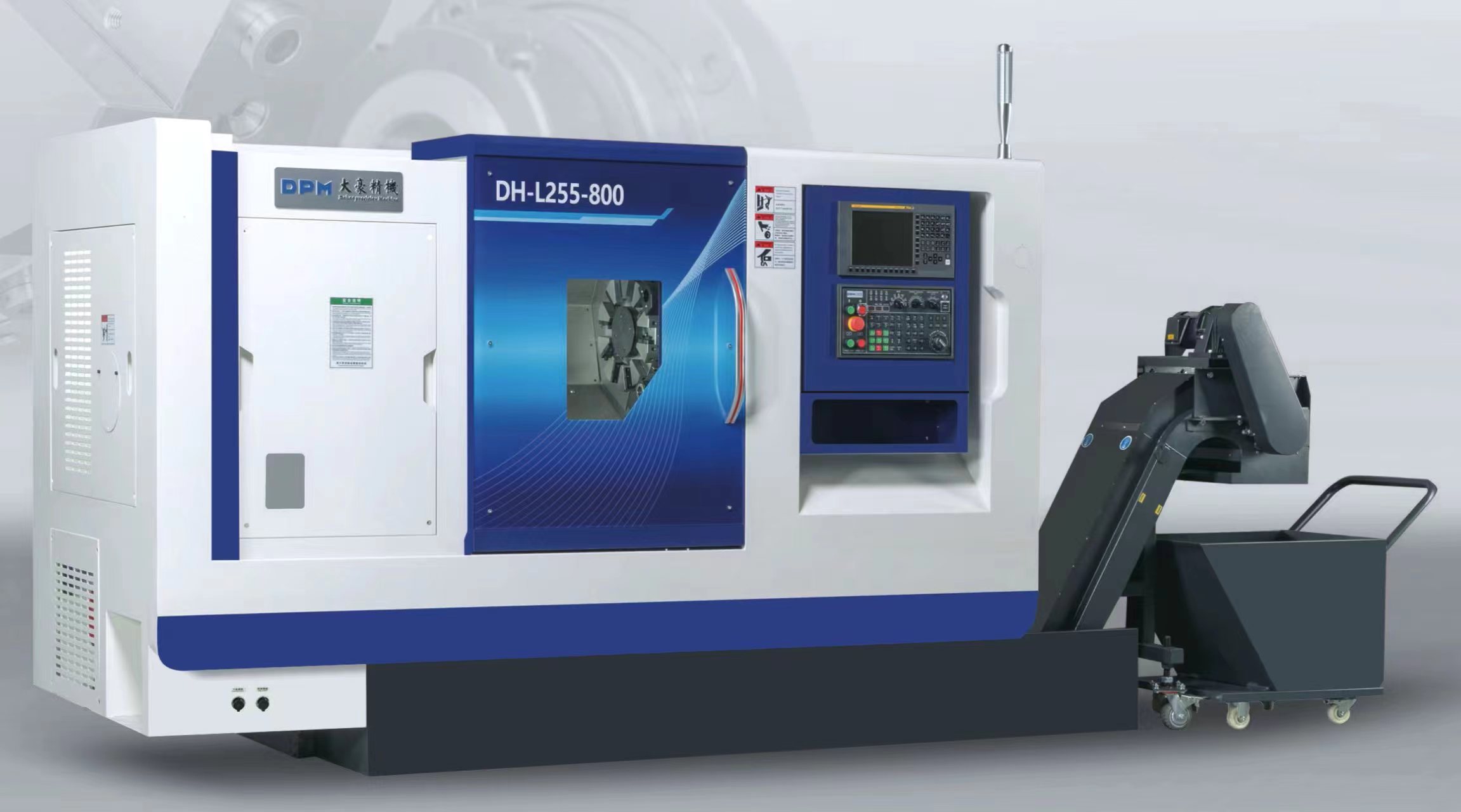

DH-L255-800 CNC Lathe

Description:Dahao DH-L series CNC lathe features and advantages compared with other Taiwan machine toolbrands with the same specifications of machine tools,the overall inclined bed is easy to concentrateiron chips in the chip removal machine to achieve automatic chip removal, cutting iron eyebrow with highheat, accumulation in the guide rail will make the guide rail heat deformation so that the working accuracychanges. In the process of mass automatic processing, it will ead to the mass scrap of the workpiece.Compared with other Taiwan brands,it has better stability, higher rigidity, greater cutting force,and largerprocessing range. Thus reduce tool loss, reduce customer processing costs, improve the service life ofthe machine.

Product Model:DH-L255-800
Manufacturer:
Update time:2024-04-29
Visits:468

Consultation Contact Us

Product Category

View All

Precautions when using CNC lathes

The correct operating method is very important for vertical machining centers

Introduction

Download

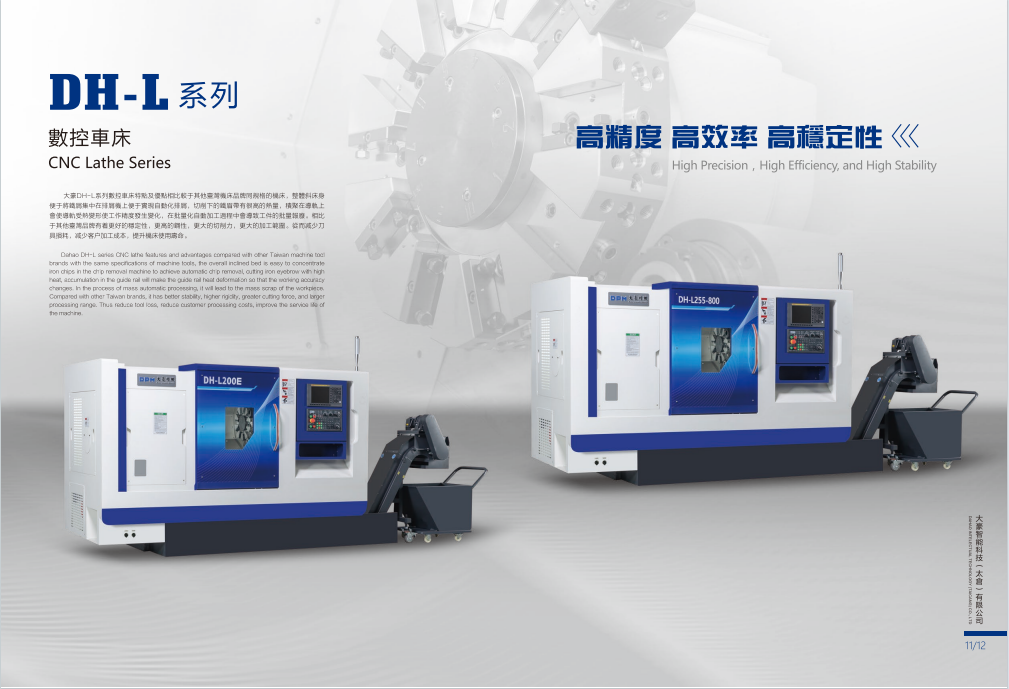

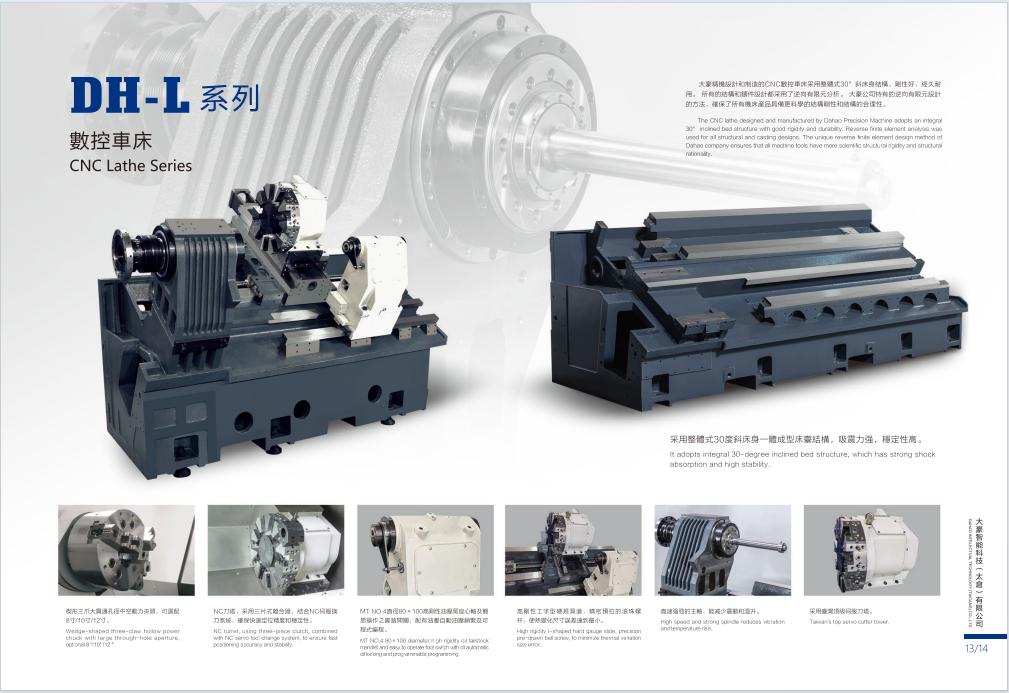

Dahao DH-L series CNC lathe features and advantages compared with other Taiwan machine toolbrands with the same specifications of machine tools,the overall inclined bed is easy to concentrateiron chips in the chip removal machine to achieve automatic chip removal, cutting iron eyebrow with highheat, accumulation in the guide rail will make the guide rail heat deformation so that the working accuracychanges. In the process of mass automatic processing, it will ead to the mass scrap of the workpiece.Compared with other Taiwan brands,it has better stability, higher rigidity, greater cutting force,and largerprocessing range. Thus reduce tool loss, reduce customer processing costs, improve the service life ofthe machine.

DH-L series CNC lathe main technical parameters

Item	Unit	DH-L255-800
Table winding	mm	φ900
Slide upper diameter	mm	φ700
Maximum outside tuming diameter	mm	φ550
Maximum tuming length	mm	800
Spindle soeed	mm/min	45-2500
Spindle nose		A2-11
Spindls throuoh hole diamster	mm	φ131
Bar accommodates diameter	mm	φ117
Soindle front bearing diameter	mm	φ170
Tailstock sleeve specifications		M.T.NO.5
Tail seat soindle diameter and stroke	mm	φ110x150L
Spindle AC servo motor	KW	15/18.5
X-axis AC servo motor Z-axis AC servo motor	kw	AC2.5(18NM) AC3.0(20NM)
X-axis travel Z-axis travel	mm	275+30 850
X-axis rapid displaoement Z-axis rapid displacement	mm/min	X=20000 Z=20000
Knife tower number speed		T12
Spindle runout		≤0.003
Square tool specification	mm	25×25
Boring tool specifications	mM	40(50)
Hydraulic pump motor	KW	40L/2.2kw
Cooling pump motor	KW	0.75
Oiler pump motor	KW	3.0L/0.15kw
Machine weight	kg	6200
